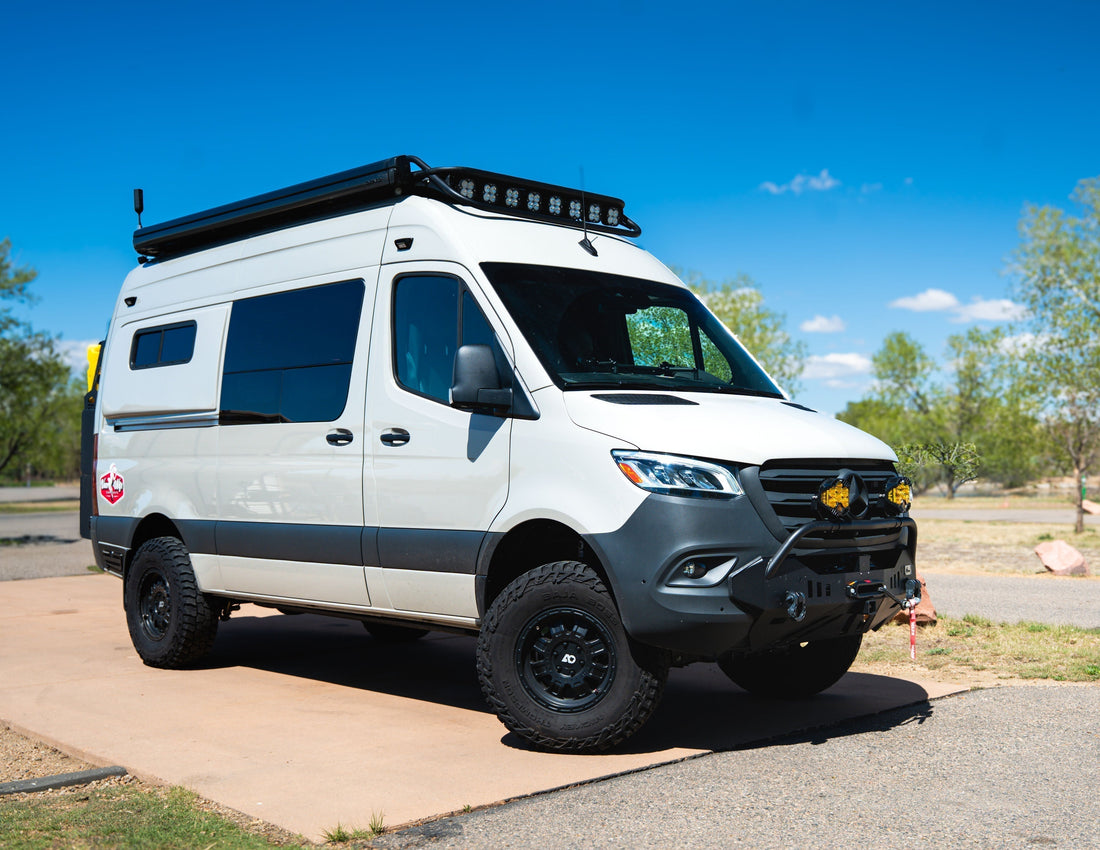

For Sale: 2023 Mercedes Sprinter 2500 AWD 144 RV Camper Van
Vehicle Overview:
For Sale: A 2023 Mercedes Sprinter 2500 144" AWD RV Camper Van. This vehicle features the modern 2.0L High-Output 4-Cylinder Twin-Turbo Diesel engine paired with Mercedes’ intelligent All-Wheel-Drive (AWD) system. It offers precise torque distribution and excellent fuel efficiency for long-distance highway travel and challenging trail approaches alike.
The vehicle has logged only 20,000 miles and comes with a 5-year, 100,000-mile extended transferable warranty. The internal architecture is built out with high-capacity utilities and precision aluminum cabinetry, serving as a ready-to-go platform for off-grid travel.
Why This Layout Works for Buyers
- Advanced Electronic Suspension Upgrade: This AWD chassis is equipped with an upgraded KW Electronic Suspension system paired with Agile Offroad wheels and rugged Mickey Thompson AT tires. This advanced setup drastically improves on-road and highway handling—negating body roll and sway when driving a fully loaded vehicle at high speeds—while providing adaptive, predictable dampening over harsh washboards and rocky trails.
- Massive, High-Capacity Power Grid: This build features an impressive electrical system built around a 990 amp-hour Victron Lithium battery bank, a 3000-watt Victron inverter, 200 watts of rooftop solar, and a 280-amp secondary high-output alternator. The secondary alternator charges the massive battery grid rapidly while you drive, completely eliminating power constraints when running the Recpro 13,500 BTU rooftop air conditioner with integrated heat pump or the induction cooktop.
- Full-Length North-South Bed System: Taller travelers don't have to compromise on sleeping space in this 144" wheelbase. The rear bedroom area features the Van Wife 4-Panel Bed System, utilizing full-length bed rails to allow for a true North-South (front-to-back) sleeping configuration. This leaves a massive structural foundation of heavy-duty aluminum wheel well covers underneath for gear, while remaining highly reconfigurable—transitioning smoothly into an upright couch configuration or storing flat against the walls to maximize vertical hauling space.
- The Versatile Rinse N Go Box Solution: This layout features the Van Wife Rinse N Go Box, a discrete 24x24x24" lower enclosure that securely and neatly tucks away a waterless Laveo Dry Toilet when not in use. Beyond standard toilet storage, this smart design doubles as an indoor shower base simply by deploying a ceiling-mounted curtain and using the integrated drain, providing a complete bathroom solution without killing your open interior floor space.
- True 4-Passenger Seating Integration: Utilizing a premium, floor-tracked Smartfloor system, the layout includes two heavy-duty removable Smartseats. This allows you to safely transport up to four passengers with seatbelts, or completely remove the rear chairs in seconds to clear out a massive central aisle for cargo hauling.
- Sprawling Storage Layout & Hanging Bags: This build maximizes storage capacity through a diverse network of vertical and under-bench solutions. The interior is lined with specialized 16" and 21" upper cabinets, a dedicated 20" Microwave Cabinet, and a complete set of Van Wife storage stuff bags (spanning 12”, 18”, and 24” configurations). Combined with the massive internal capacity of the extended lower benches and heavy-duty exterior rear door boxes, every piece of gear has a dedicated home. Hot water and cabin climate are handled by the advanced premium Rixen/Espar Hydronic Hot Water and Heating System.
See More Photos -> HERE
Complete Vehicle Specifications
Overview
- Price: $195,000
- Mileage: ~20,000 miles
- Warranty: 5-Year / 100,000-Mile Extended Transferable Warranty
- Engine: 2.0L High-Output 4-Cylinder Turbo Diesel
- Drivetrain: All-Wheel Drive (AWD)
- Seating: Seats 4 (Smartfloor tracking system with 2 removable seats)
- Comfort: Fully loaded cockpit with heated swivel seats
- Fuel Capacity: Extended 48-gallon fuel tank
Exterior & Suspension Modifications
- CA Tuned front steel bumper with Warn 12,000 LB winch
- KW Electronic Suspension upgrade kit
- Premium Agile Offroad Wheels with Mickey Thompson AT tires
- Safari Roof Rack with integrated under-vehicle and full exterior Code 4 utility lighting
- Girard motorized awning
- Flatline side-mount ladder
- X-Bull Rear Door Carriers
- 2x Van Wife Components heavy-duty exterior rear storage boxes
- Flarespace side flares with integrated lighting
- ARB onboard air compressor system with 50-foot utility hose
- Roam Beat Box Stereo System integrated under the passenger seat
Power, Utilities & Climate Networks
- 990 Ah Victron Lithium battery bank
- 280 Amp secondary high-output alternator
- 3000 Watt Victron inverter/charger
- 200 Watts of rooftop solar panels
- Recpro 13,500 BTU rooftop air conditioner with heat pump
- MaxxFan Deluxe roof vent fan
- Rixen/Espar Hydronic Hot Water and Air Heating System
- 24 Gallon fresh water tank (Spare tire cavity placement)
- 20 Gallon under-mount gray water tank
Interior Structural Components & Technology
- VWC 18” Sink Base containing 12 gallons of dedicated internal fresh water storage
- VWC 18” Fridge Base with integrated storage drawer
- Nova Kool R3100 AC/DC Refrigerator with integrated induction cooktop
- VWC 20” Microwave Cabinet with built-in microwave
- VWC 16” & 21” Upper Storage Cabinets with undermount LED lighting
- VWC 36” Van Essential Upper Soft Storage Cabinet (Rear placement)
- VWC 24” Rinse N Go Box with built-in Laveo Dry Toilet
- VWC Heavy-Duty Aluminum Wheel Well Covers (60”x22”x16” and 60”x12”x16” bases)
- VWC 4-Panel Bed System with Full-Length Rails (North-South Configuration)
- Complete set of VWC storage stuff bags (12", 18", and 24" variations)
- Mofi-Wifi Router (configured for T-Mobile unlimited data cards)
- WeBoost Cellular Signal Booster Antenna
- Midland CB Radio setup
See More Photos -> HERE
Pricing & Inquiries
This van is located at our main facility and is ready for immediate delivery.
If you are interested in purchasing this rig or scheduling an in-person viewing, please fill out the inquiry form below.
Asking Price: $195,000
