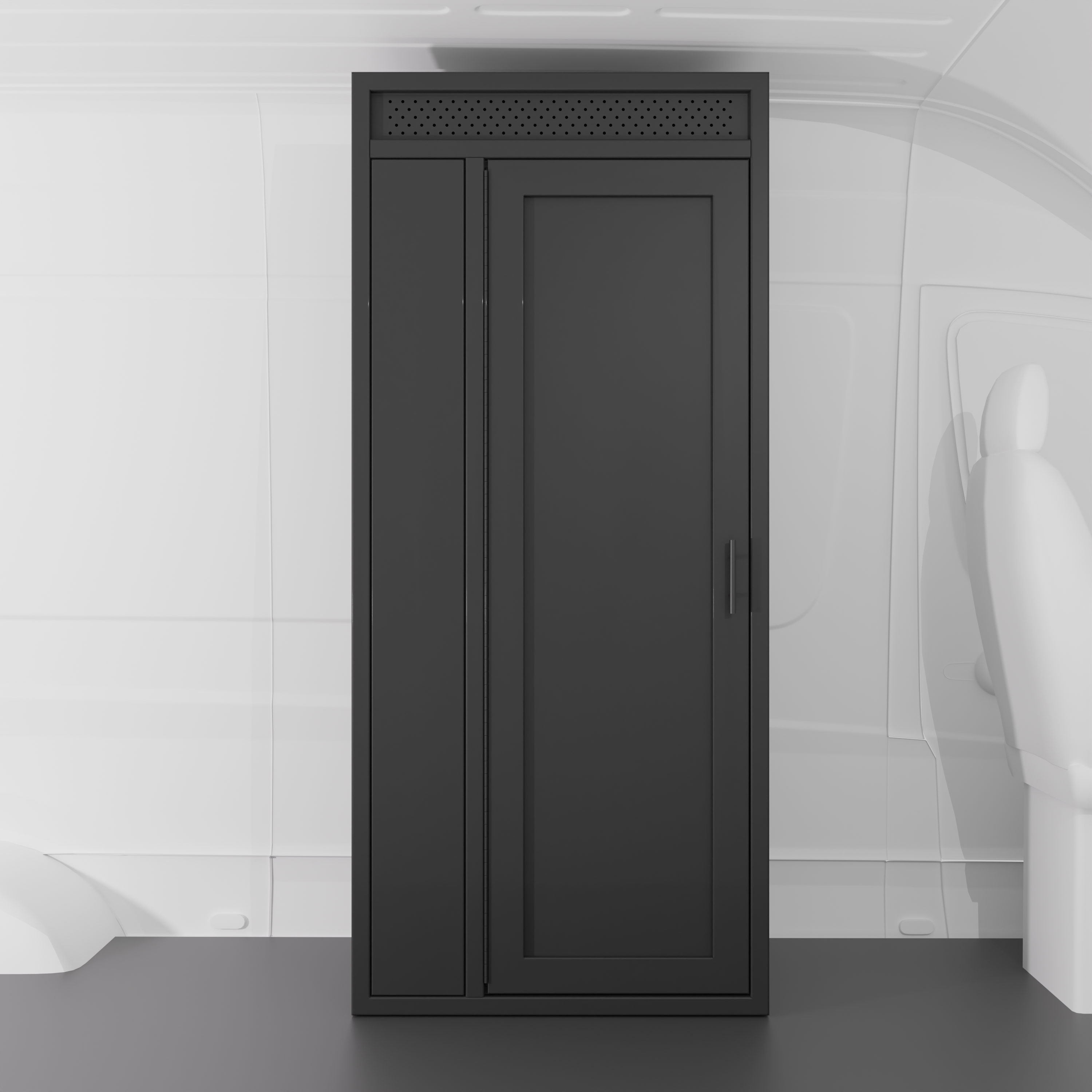

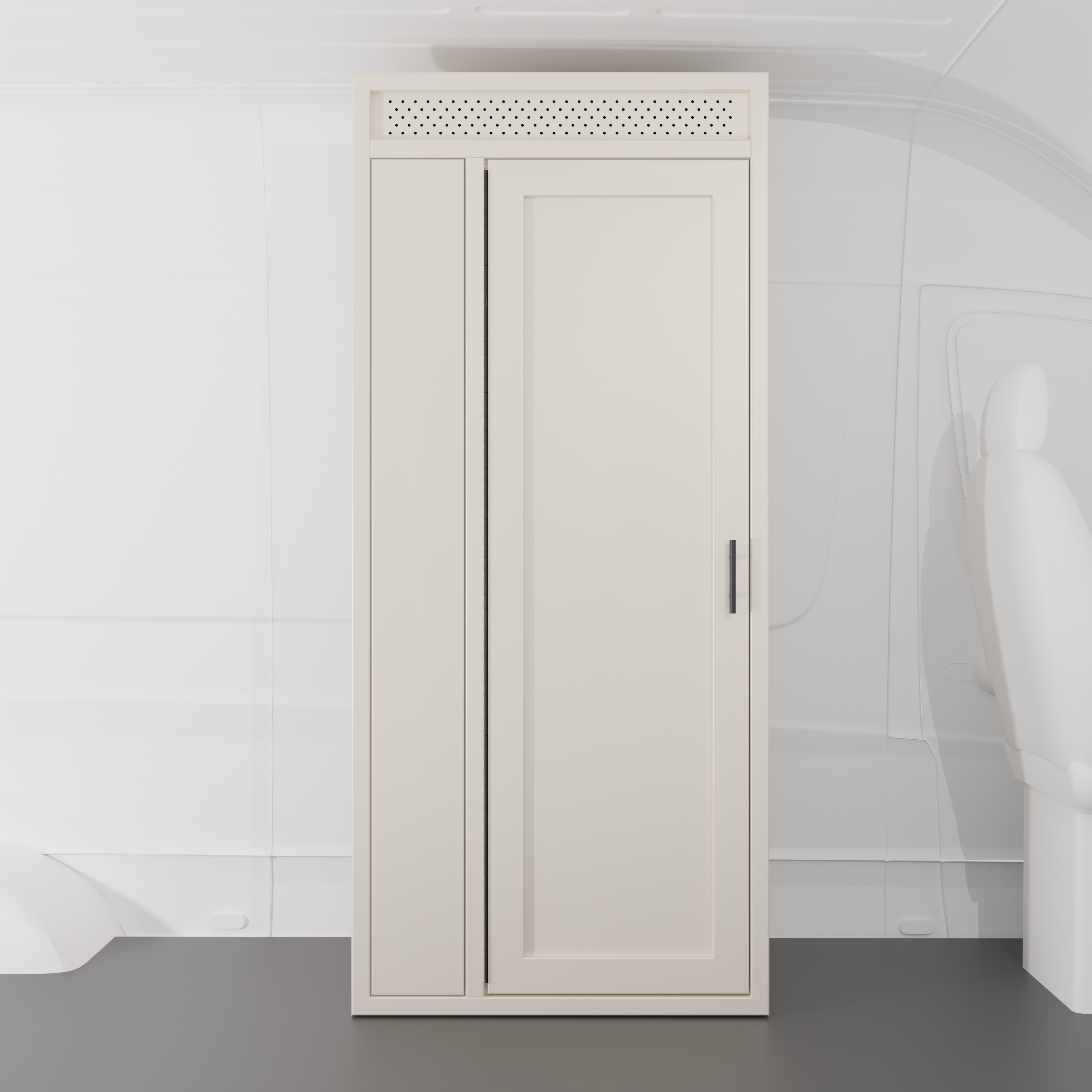

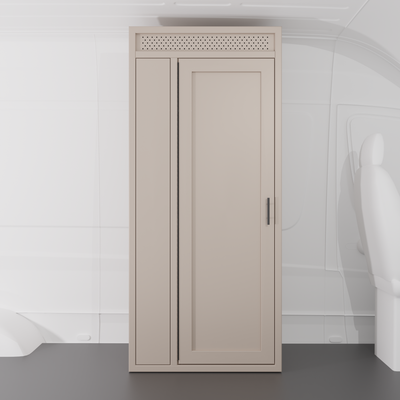

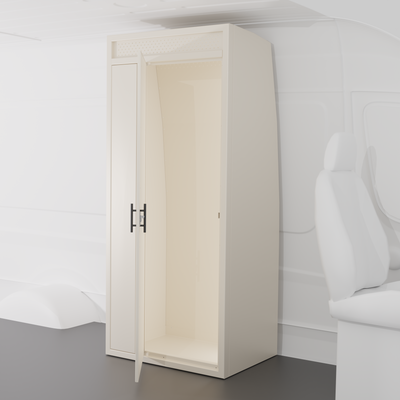

33" Shower - 33" x 24" x 74.5"

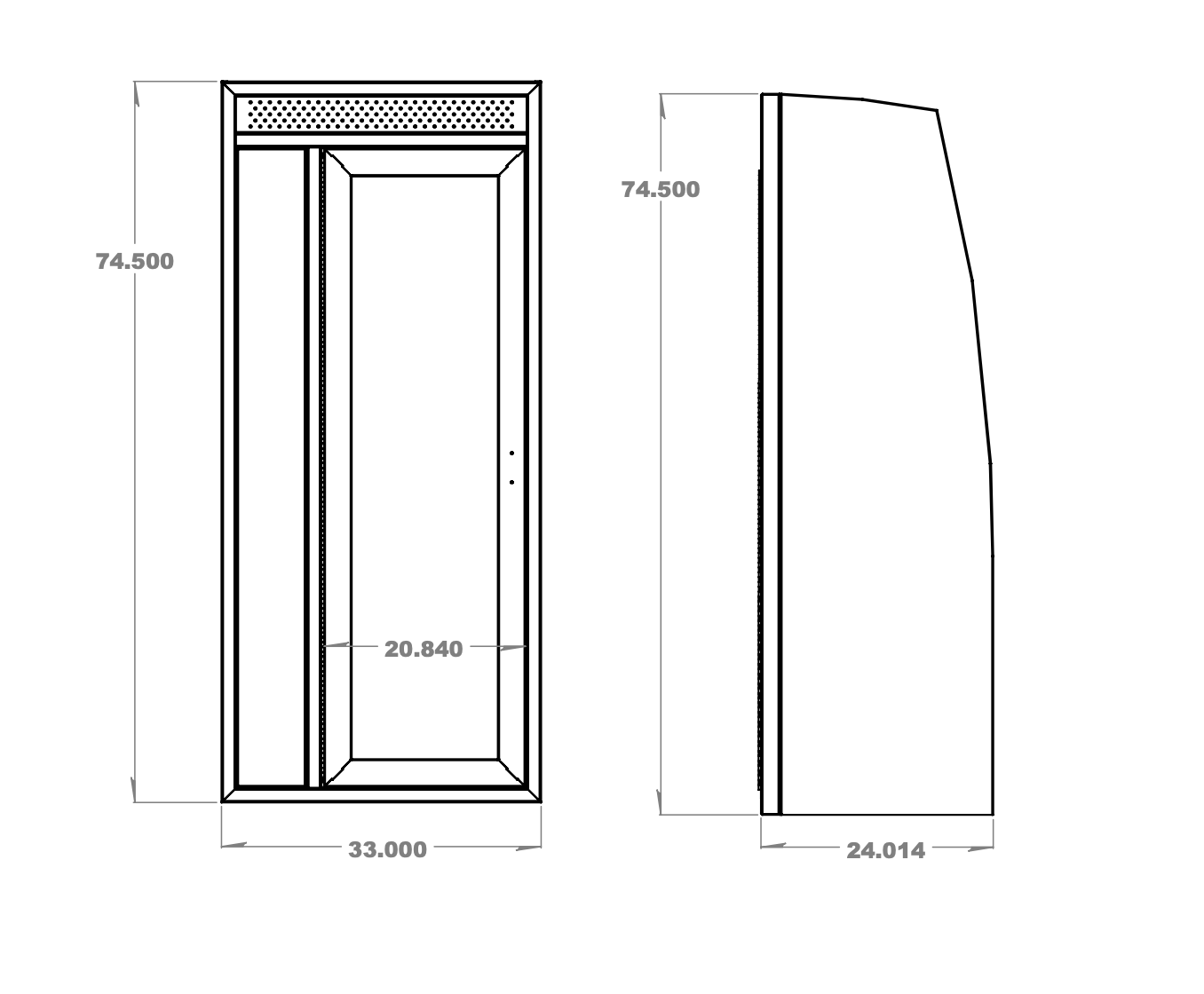

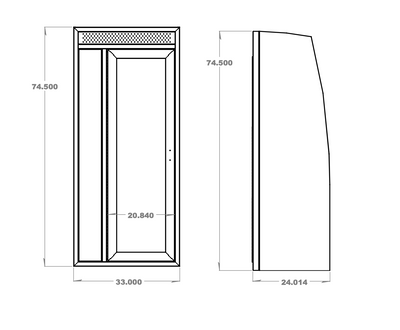

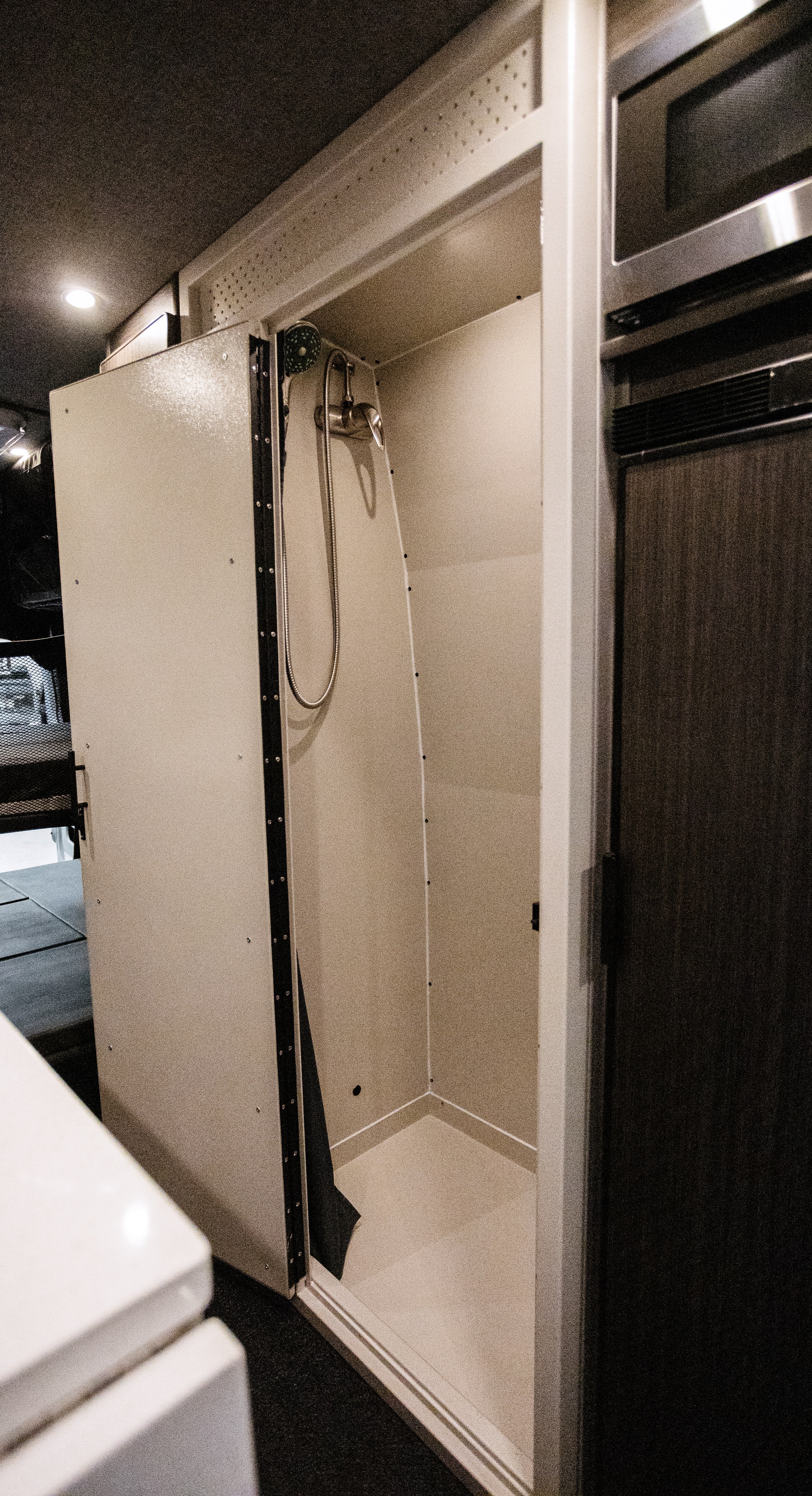

The 33" x 24” x 74.5” Shower (width x depth x height) is the reason you’ll always have access to a hot shower, wherever you are. This unit is the ideal size for those wanting a permanent wet bath with room for a toilet. Every panel in this van shower/wetroom (including the pan) is constructed from powder-coated aluminum and designed to stand up to full-time use. The back wall is angled to maximize interior headroom while fitting the roof contours of Sprinter, Transit & Promaster vans.

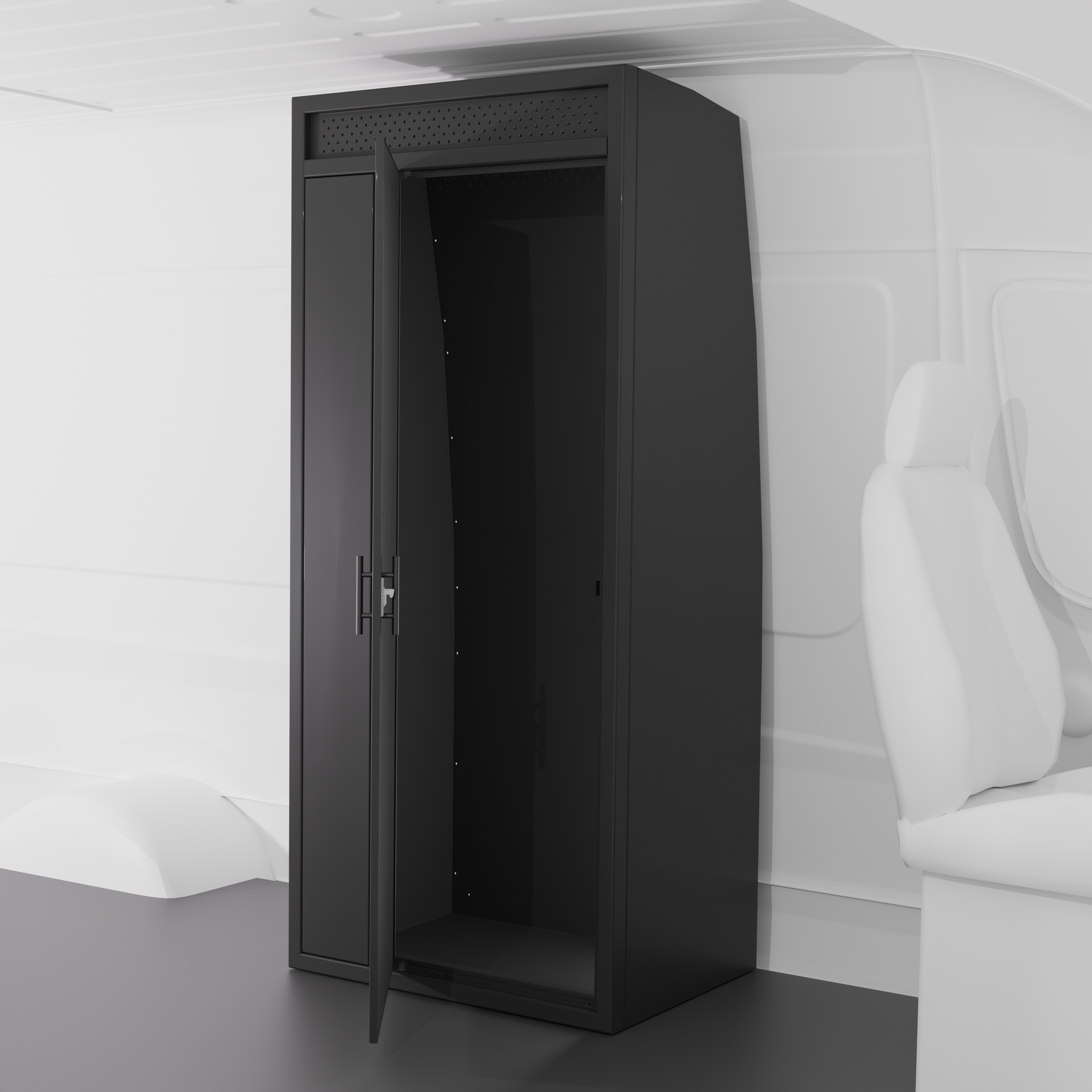

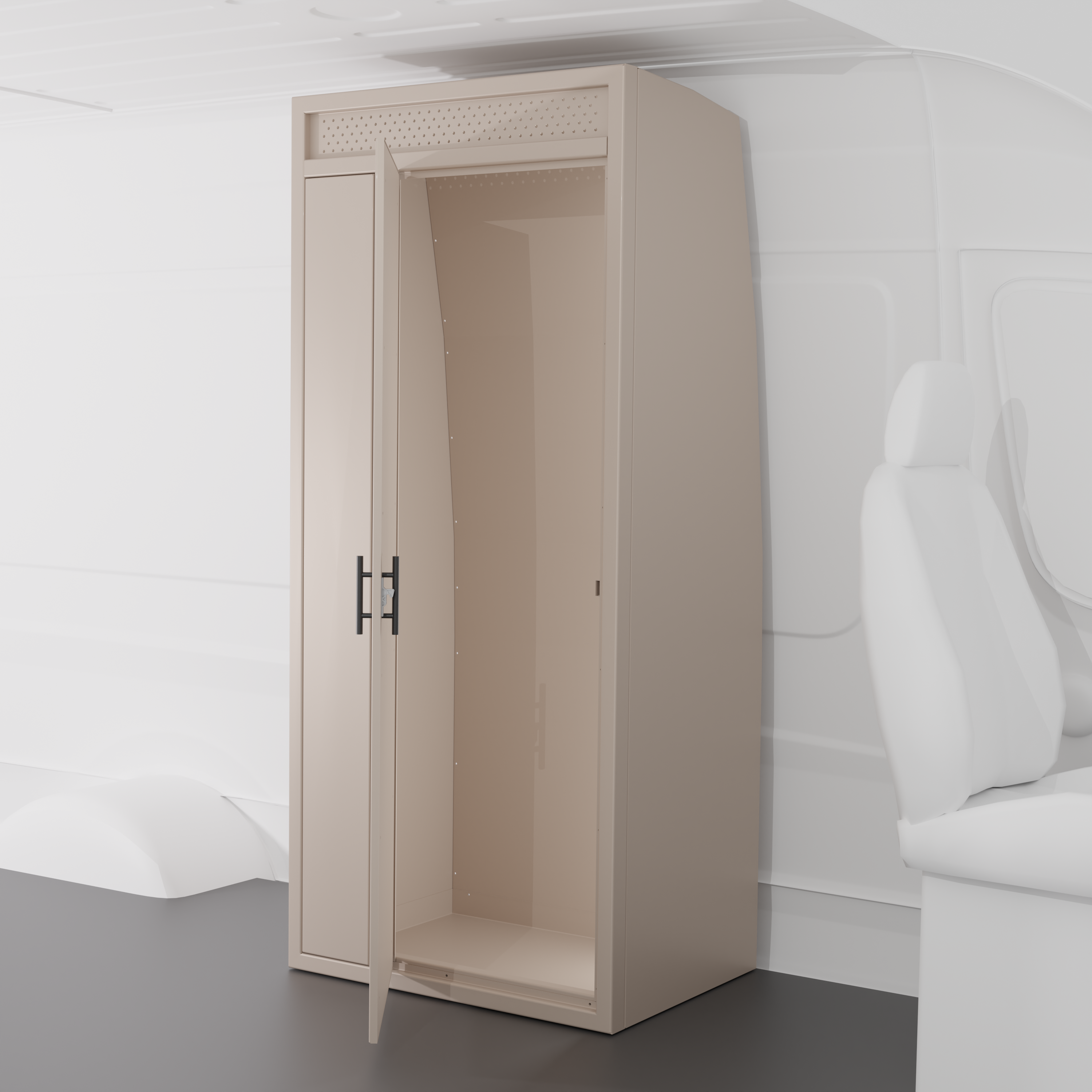

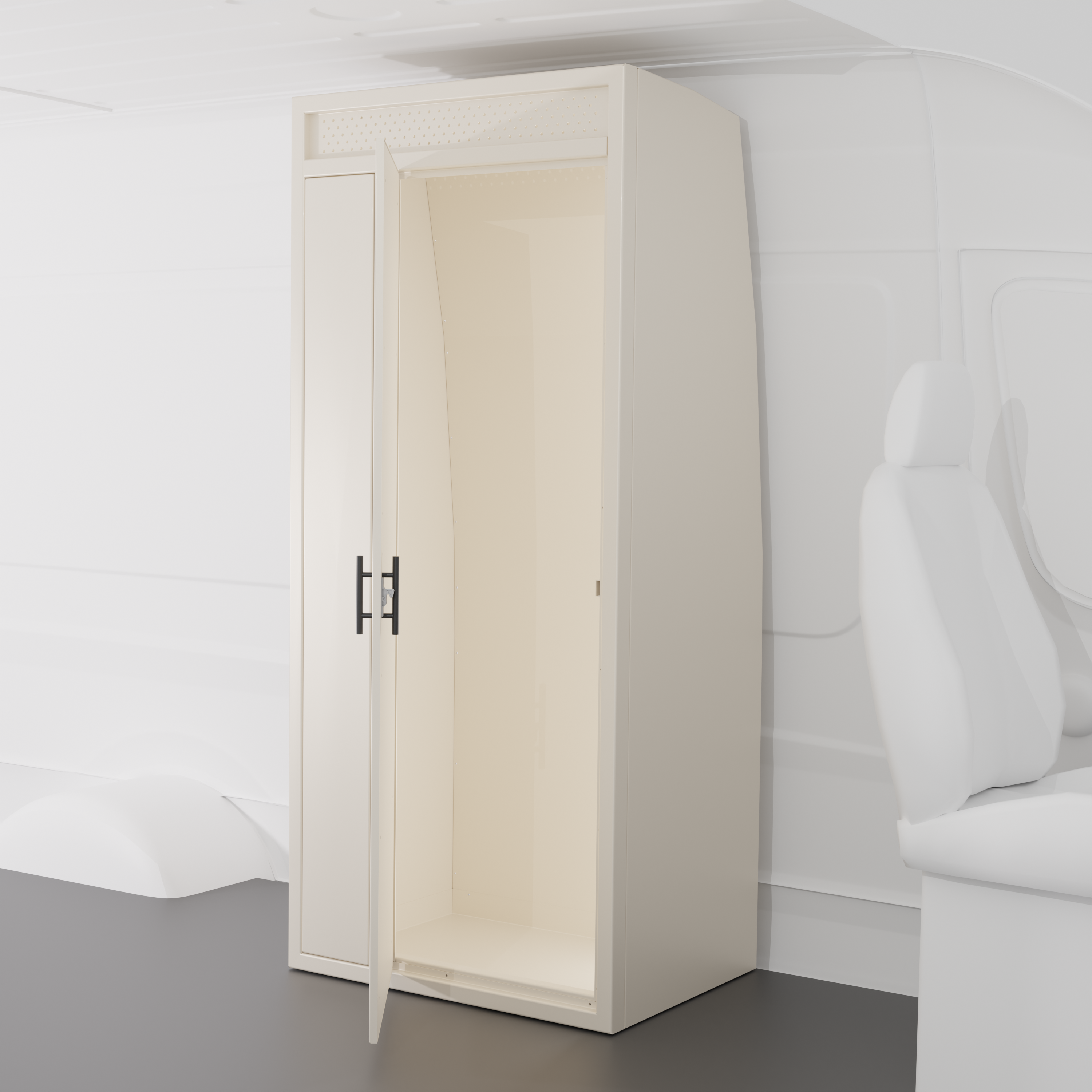

This product ships flat, has pre-drilled holes, and includes rivets for straightforward assembly. Ventilation holes sit above the door, and the pan is flat, so drain placement can be set to fit your specific build. The door is 20.8" wide, minimizing intrusion into the van when it opens, while still being comfortable to enter and exit.

A shower curtain and drain (not included) are required to use this product as a wet shower. Silicone must be applied to the seams to make the unit watertight. This unit is compatible with RV retractable rolling shower doors.

Clean shaker-style door features a removable panel that allows you to add your own inlay into the shaker door; we suggest thin materials no thicker than ⅛”, such as a thin laminate material.

Our showers are also available in 24", 30", and 36" widths. All showers are 24" deep and 74.5" high.

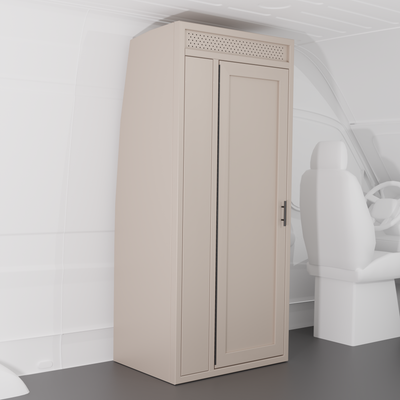

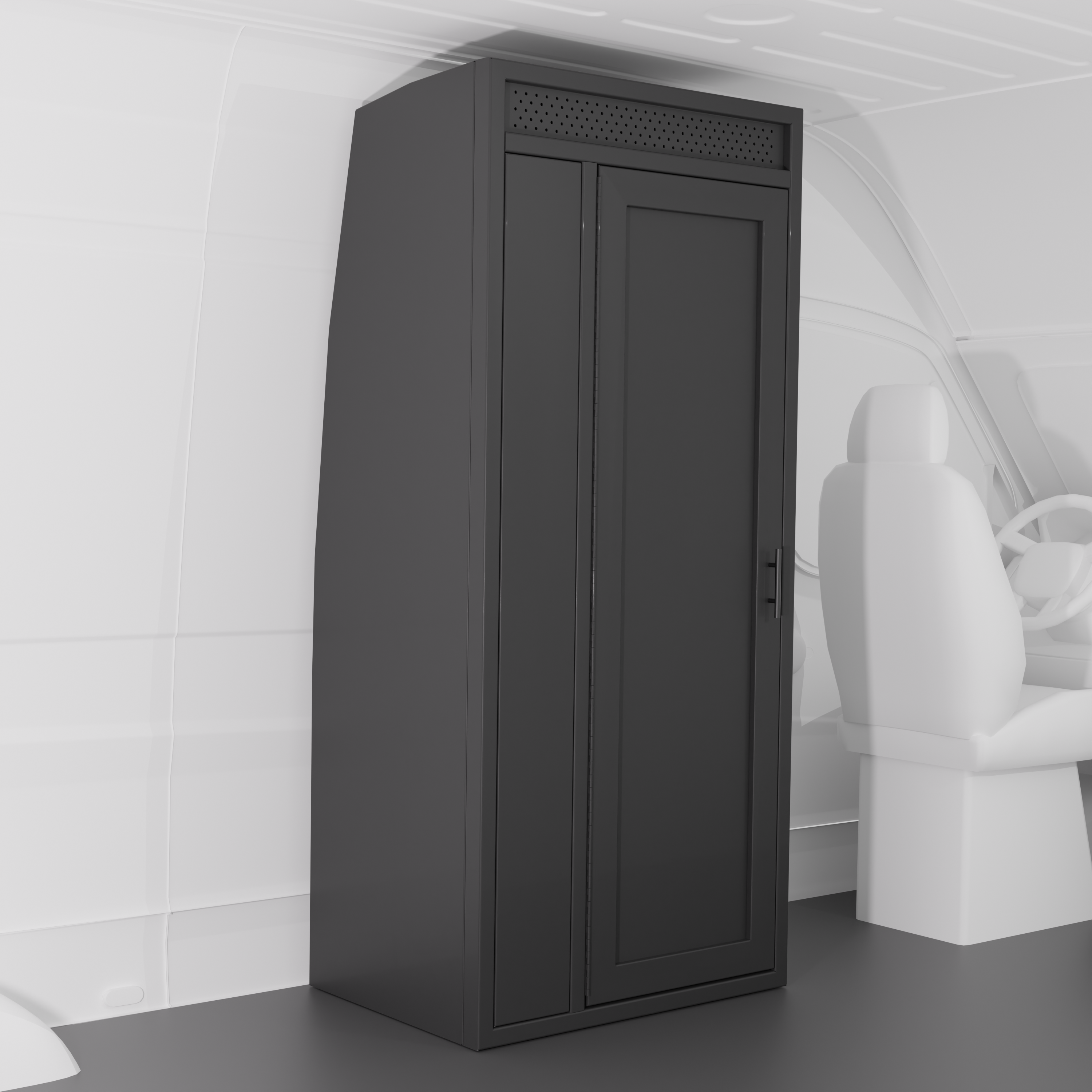

Available in Black and Sandstone.

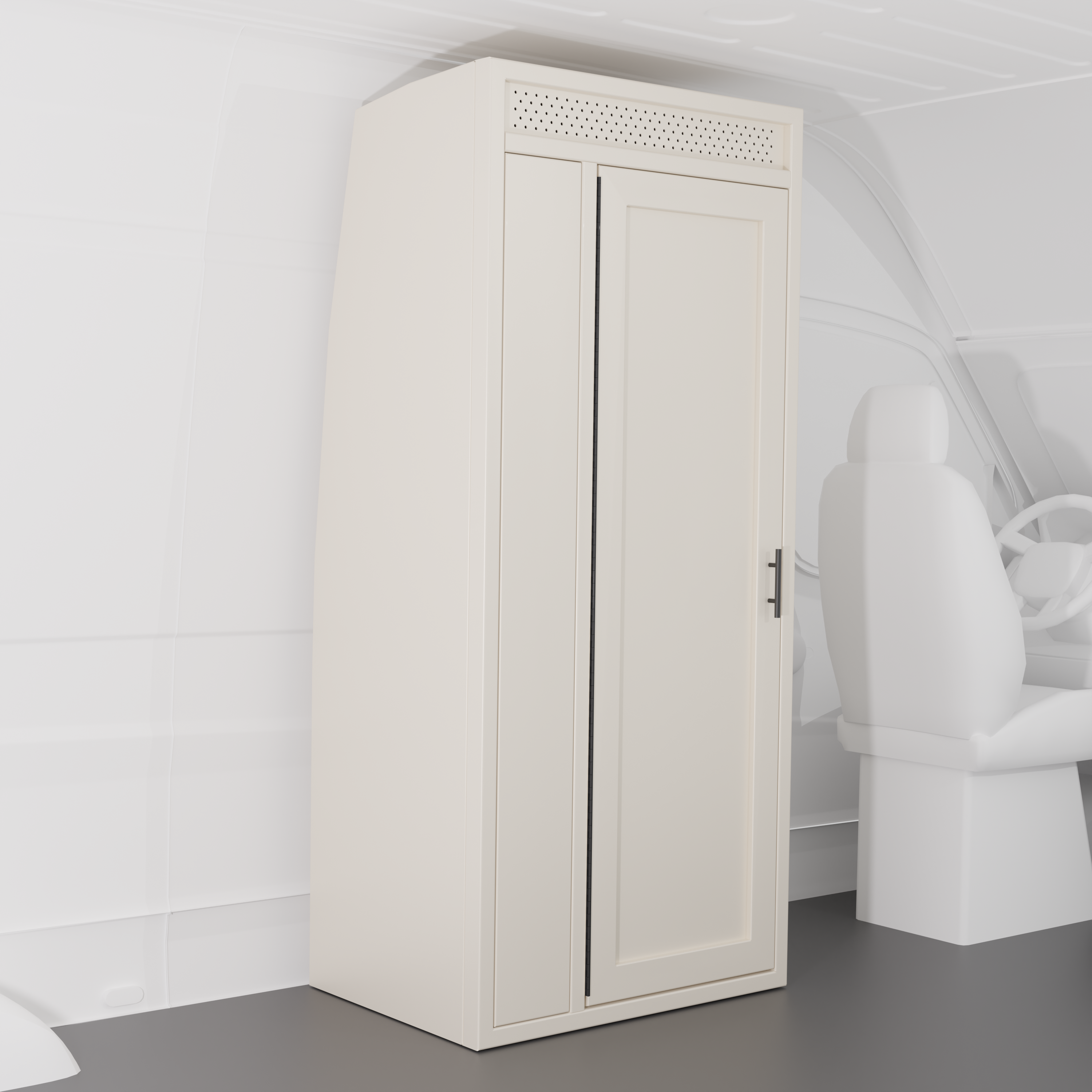

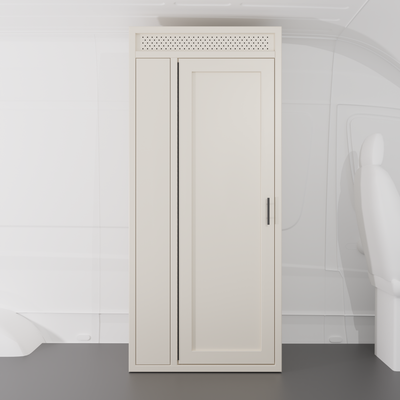

Special Order: Sage Green, White, Matte Blue, and Champagne

Assembly

After identifying a location for your pan and drain, place the rear panel behind the pan and attach the side panels using rivets.

Attach the front door panel using rivets or bolts.

Insert the ceiling panel last (any electrical for lighting can be done prior to this step) and rivet or bolt in place.

We recommend fastening to the van using the floor drain and fasteners of your choice through the top of the shower into the van’s framing members.

Additional rivet holes can be drilled if needed; however, they are not required.

We recommend applying silicone to the seams to create a watertight unit.

Shower Assembly Instructions

Recommended for installation:

• Drain
• Faucets
• Teak Mat
• Flaring Tool


Care

We suggest cleaning with a mild detergent such as Dawn or Simple Green cleaners. Please use a cloth, sponge, or soft-bristled brush, but not abrasive scrubbers or harsh chemicals, to avoid damaging the powder coat.

Shipping Details

This product will ship via freight carrier on a pallet. We strongly recommend choosing a shipping address that can accommodate a truck. Please review our freight policies and inspect your shower upon receipt for freight damage. All freight damage or other shipping issues must be reported in a timely manner according to our freight policy.
