3 Panel Platform Bed

Sometimes all you need is a great bed.

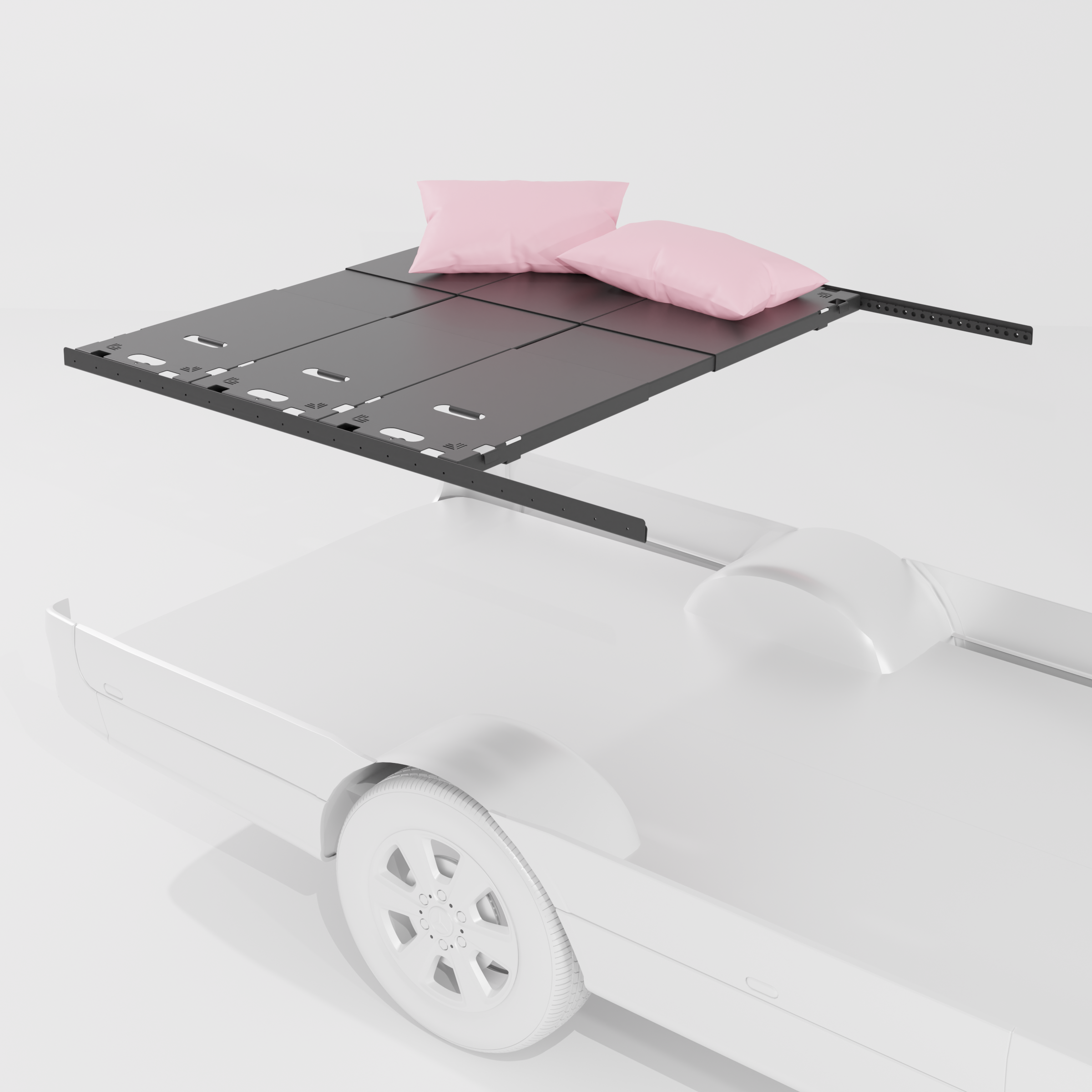

The 3-panel Platform Bed delivers a rock-solid sleeping platform, built for one job and built to do it well.

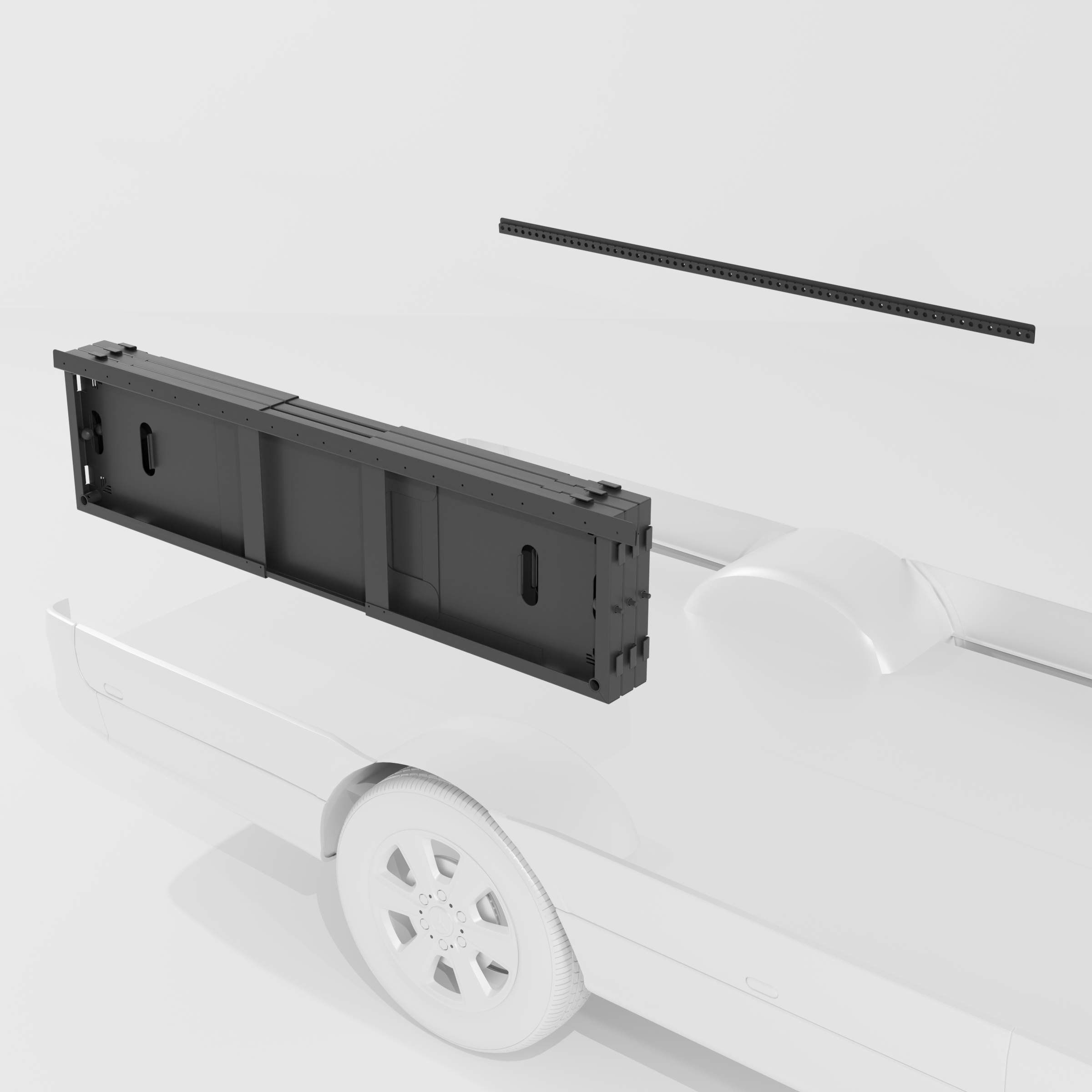

It utilizes 3 panels and the single supported bed rail to create a 54” wide platform, which is perfect for East-West sleepers. Plus, the bed panels mount flat against the wall to open up the entire rear of the van when not in use. A strap is recommended to hold the panels in place when the van is in motion (not included).

Each bed panel has a thumb screw that holds the panel in place while in use by fitting into the predrilled J-channel rail holes. Adjoined panels clip together for added stability.

Each panel measures 18" deep and adjusts between 60" and 72" wide, with the single supported bed rail running 75" long (plan for walls that fall within that range and stay parallel & square). When properly installed, each panel holds up to 400 lbs.

The individual panels can also be configured as a standalone table or bench set outside of the van with the use of add-on leg kits.

One important note: this isn't a seating system for use while driving, and it shouldn't be fitted with seatbelts or relied on in motion. Every panel needs to be secured before you drive, leg systems should be removed, and any panels mounted vertically need to be strapped down.

Need a platform bed, but prefer a wider layout or a North-South sleeping configuration in your build? Check out the 4-Panel platform bed.

Assembly

Installation Guide
